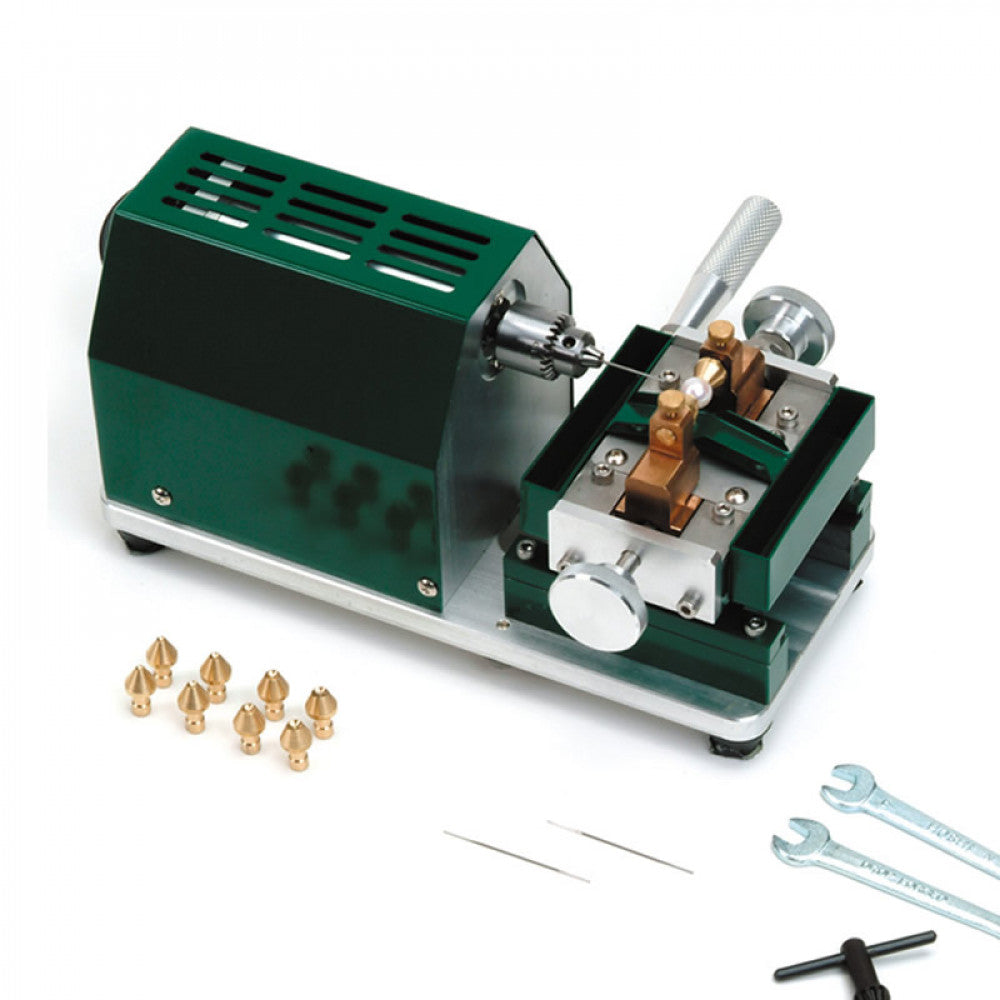

Double-Sided Pearl Drilling Machine - 240V

Please note: this is a showroom model, so the external packaging may show minor imperfections; however, the machine itself is in perfect condition and has never been used.

The Japanese Pearl Drilling Lathe is a high-precision, professional drilling system engineered to drill pearls from 3 mm to 20 mm with perfect accuracy and zero chipping or cracking. Designed for jewelers and pearl production specialists, this unit guarantees flawless, centered holes with no deformation or “exit wound” damage.

High-Precision Pearl Drilling

• Specially designed for 3–20 mm pearls
• Achieves perfectly smooth holes with no cracking or blow-out
• Equipped with a 6,000 RPM motor for stable, clean drilling
• Includes brass pearl holders (3 mm to 7 mm) for secure and accurate positioning
• Perfect Alignment With 180° Rotating Jig

This advanced lathe eliminates deformation by drilling each pearl from both sides, perfectly meeting at the center.

How it works:

• Mount the pearl using the appropriate holders from the accessories kit.
• Bring the self-centering holding jig forward to the stationary motor with the correct drill size.
• Drill halfway through the pearl.
• Pull the jig lever back until it unlocks.
• Rotate the jig exactly 180°, where it locks into perfect alignment.
• Drill the second half precisely into the existing channel.
• Result: A perfectly drilled pearl with no exit damage, no misalignment, and no surface deformation.

Designed for Production Efficiency

• Two integrated catch trays keep finished pearls organized
• Smooth workflow ideal for workshops and production environments
• Compact design for bench-top use

Essential Features & Components

• High-precision drill chuck
• Self-centering vise for secure holding
• Adjustable Jacobs chuck for pearl drills
• Two genuine Japanese pearl drills
• Five pairs of pearl holding cups
• Two wrenches
• One chuck key
• Everything needed for professional pearl drilling is included.

Technical Specifications

• Motor speed: 6,000 RPM
• Pearl size range: 3 mm – 20 mm
• Voltage: 220–240 V
• Power: 240 V
• Size: 27.5 × 10 cm
